Discrete math venn diagrams explained in detail. Understanding Venn diagrams is a fundamental skill in discrete mathematics, offering a visually intuitive way to represent sets and their relationships. These diagrams are incredibly versatile, used for illustrating logical relationships, probability, set operations, and much more. This comprehensive guide will delve deep into the world of Venn diagrams, covering their history, basic components, common operations, advanced applications, and practical examples. Whether you're a student tackling a new concept or a professional looking to refresh your knowledge, this article will provide a clear and thorough explanation of how Venn diagrams work and why they are indispensable tools in discrete mathematics.

  • Introduction to Venn Diagrams in Discrete Math
  • The History and Evolution of Venn Diagrams
  • Understanding the Basic Components of Venn Diagrams
    • Universal Sets
    • Sets and Their Elements
    • Regions and Subsets
  • Fundamental Set Operations Represented by Venn Diagrams
    • Union of Sets
    • Intersection of Sets
    • Complement of a Set
    • Difference of Sets
  • Advanced Venn Diagram Concepts and Applications
    • Three-Set Venn Diagrams
    • Four-Set Venn Diagrams (and Beyond)
    • Venn Diagrams in Logic and Propositional Calculus
    • Venn Diagrams in Probability and Statistics
    • Venn Diagrams in Computer Science
  • Practical Examples of Discrete Math Venn Diagrams
    • Example 1: Student Club Memberships
    • Example 2: Survey Data Analysis
    • Example 3: Identifying Common Properties
  • Tips for Drawing and Interpreting Venn Diagrams
  • Conclusion: The Power of Visualizing Sets with Venn Diagrams

The History and Evolution of Venn Diagrams

The history of Venn diagrams is closely tied to the work of English logician John Venn, who popularized their use in the late 19th century. While similar visual representations of sets existed earlier, notably through the work of Leonhard Euler (Euler diagrams), Venn's diagrams are distinguished by their specific design and application in formal logic and set theory. John Venn first introduced his diagrams in his 1880 paper "On the Diagrammatic and Mechanical Representation of Propositions and Reasonings." His intention was to create a clear and systematic way to illustrate logical arguments and propositions, making complex relationships easier to grasp. These diagrams provided a robust framework for visualizing the conclusions that could be drawn from premises in logical syllogisms, building upon the foundations laid by mathematicians and logicians before him.

Euler diagrams, developed by Euler centuries earlier, often used overlapping circles to represent relationships between sets, but they didn't always adhere to the strict rules that Venn later formalized. For instance, Euler diagrams might not explicitly show all possible intersections, whereas Venn diagrams are designed to represent every logical possibility between sets. This systematic approach to visualization made Venn diagrams particularly valuable for teaching and understanding the principles of set theory and formal logic, a role they continue to play effectively today. The enduring popularity of Venn diagrams speaks to their effectiveness as a pedagogical tool and their broad applicability across various academic disciplines.

Understanding the Basic Components of Venn Diagrams

At its core, a Venn diagram is a graphical representation of sets and their relationships. To effectively use and interpret these diagrams, it's crucial to understand their fundamental components. These elements work together to illustrate how different collections of items, or sets, overlap and interact within a larger context. Mastering these basic building blocks is the first step towards appreciating the full power of Venn diagrams in discrete mathematics.

Universal Sets

The universal set, often denoted by a capital 'U' or enclosed in a rectangle, represents the collection of all possible elements under consideration for a particular problem or context. Think of it as the overarching container for all the sets being examined. Without a defined universal set, it can be difficult to determine the scope of elements being compared, especially when dealing with complements. For example, if we are discussing sets of students in a school, the universal set would be all students enrolled in that school. All other sets discussed in relation to this problem would be subsets of this universal set.

Sets and Their Elements

Within the universal set, individual sets are typically represented by circles. Each circle encloses a collection of specific elements that share a common characteristic. These elements are the individual items within a set. For instance, if the universal set is all students in a school, one set might be "students who play soccer," and its elements would be the names of those students. Another set might be "students who are in the chess club," with its elements being the names of those chess club members. The key is that each set is defined by the properties of its members.

Regions and Subsets

The areas within and between the circles of a Venn diagram represent different relationships between the sets. The overlapping regions signify elements that are common to multiple sets, indicating an intersection. The areas within a circle but outside any overlap represent elements unique to that specific set. The entire collection of elements within a circle constitutes that set. A subset is a set where all of its elements are also elements of another, larger set. In a Venn diagram, if set A is a subset of set B, the circle representing A would be entirely contained within the circle representing B.

Fundamental Set Operations Represented by Venn Diagrams

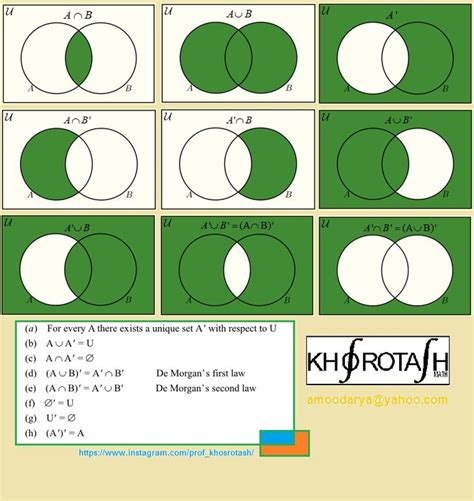

Venn diagrams are exceptionally useful for visualizing and understanding the basic operations performed on sets in discrete mathematics. These operations allow us to combine, compare, and manipulate sets to derive new sets with specific properties. The visual nature of Venn diagrams makes these abstract operations concrete and easy to comprehend.

Union of Sets

The union of two sets, denoted as A ∪ B, is the set of all elements that are in set A, or in set B, or in both. In a Venn diagram, the union of sets A and B is represented by the entire area covered by both circles, including their overlapping region. If you were shading the diagram to show A ∪ B, you would shade everything within the boundaries of circle A and everything within the boundaries of circle B. This operation essentially combines all unique elements from both sets into a single, larger set.

Intersection of Sets

The intersection of two sets, denoted as A ∩ B, is the set of all elements that are common to both set A and set B. On a Venn diagram, the intersection is depicted by the region where the circles for set A and set B overlap. Only elements present in both sets are included in this specific region. For example, if A is the set of students who like math and B is the set of students who like science, A ∩ B would be the students who like both math and science, represented by the overlap of the math and science circles.

Complement of a Set

The complement of a set A, denoted as A' or Aᶜ, is the set of all elements in the universal set U that are not in set A. In a Venn diagram, this is represented by the area outside of the circle representing set A but still within the rectangle representing the universal set U. If you have a universal set of all students in a school and set A is students who play basketball, A' would represent all students who do not play basketball, visualized as the entire area of the school's student body rectangle, excluding the basketball players' circle.

Difference of Sets

The difference of two sets, A - B, is the set of all elements that are in set A but not in set B. On a Venn diagram, this is represented by the portion of circle A that does not overlap with circle B. It's the part of A that is exclusively A and not shared with B. For instance, if A is the set of students who play football and B is the set of students who play soccer, A - B would be the students who play football but not soccer. This is shown by shading the part of the football circle that is outside the soccer circle.

Advanced Venn Diagram Concepts and Applications

While two-set Venn diagrams are common, the principles extend to more complex scenarios with multiple sets. Understanding these advanced applications highlights the true power and flexibility of Venn diagrams in tackling sophisticated problems in discrete mathematics and related fields.

Three-Set Venn Diagrams

A three-set Venn diagram typically uses three overlapping circles, each representing a different set. These diagrams are essential for visualizing relationships among three distinct groups. The diagram will have eight distinct regions: seven within the circles representing various combinations of set memberships and one outside all circles but within the universal set, representing elements belonging to none of the three sets. For example, with sets A, B, and C, there are regions for elements only in A, only in B, only in C, in A and B but not C, in A and C but not B, in B and C but not A, in all three (A, B, and C), and in none of them.

These diagrams are crucial for solving problems involving three categories, such as analyzing survey data with three distinct questions or understanding the overlap in skill sets among employees in different departments. Properly labeling and interpreting the regions in a three-set diagram is key to accurate analysis. For instance, the region where all three circles intersect represents elements belonging to all three sets simultaneously. The regions where only two circles overlap represent elements belonging to exactly two of the sets.

Four-Set Venn Diagrams (and Beyond)

Visualizing relationships involving four or more sets using traditional overlapping circles becomes geometrically challenging and often impractical. While it's possible to construct a four-set Venn diagram, it requires a more complex arrangement of ellipses or other shapes to ensure that every possible intersection is represented. These diagrams are less common in introductory contexts due to their complexity. For greater numbers of sets, alternative methods like Karnaugh maps (in Boolean algebra) or specialized software may be more effective for visualization and analysis.

However, the principles of systematically identifying all possible intersections and complements still apply. When dealing with more than three sets, the focus often shifts from drawing a perfect geometric representation to understanding the logical structure of the intersections and their corresponding cardinalities. The complexity increases exponentially, making careful bookkeeping and systematic enumeration of possibilities critical for accurate problem-solving.

Venn Diagrams in Logic and Propositional Calculus

In logic and propositional calculus, Venn diagrams can be used to represent logical propositions and test the validity of arguments. Each circle can represent a proposition, and the relationships between the circles (overlap, no overlap) can represent logical connectives like AND (intersection), OR (union), and NOT (complement). For example, an argument is valid if the conclusion's region is necessarily shaded whenever the premises' regions are shaded. This visual method helps in understanding the truth conditions and entailment relationships between different logical statements.

Boolean algebra, which underpins much of computer science, heavily relies on the principles illustrated by Venn diagrams. The operations of Boolean algebra—AND, OR, NOT—directly correspond to set operations like intersection, union, and complement. Therefore, Venn diagrams serve as an intuitive bridge for understanding how logical operations translate into manipulations of sets of data or states.

Venn Diagrams in Probability and Statistics

Venn diagrams are fundamental tools in probability theory and statistics for visualizing and calculating probabilities of events. The area within the universal set represents the total probability of 1 (or 100%). The areas of the circles and their overlaps represent the probabilities of individual events and their combinations. For example, the probability of the union of two events A and B, P(A ∪ B), can be visualized as the total area covered by circles A and B, and calculated using the formula P(A ∪ B) = P(A) + P(B) - P(A ∩ B).

The concept of conditional probability can also be illustrated. If we know that event B has occurred, the new universal set for considering event A becomes the area of circle B. The probability of A given B, P(A|B), is then the area of the intersection of A and B divided by the area of B. This visual aid is invaluable for understanding concepts like independence, mutually exclusive events, and the impact of one event's occurrence on another's probability.

Venn Diagrams in Computer Science

In computer science, Venn diagrams find applications in areas like database querying, algorithm design, and data structures. For instance, in database operations, selecting records that satisfy multiple criteria can be directly mapped to the intersection of sets representing those criteria. Similarly, operations to retrieve all records matching at least one criterion correspond to the union of sets.

Set theory, visualized by Venn diagrams, is also foundational to relational databases. Each table in a relational database can be thought of as a set, and operations like joins, unions, and differences on these tables mirror set operations. Understanding Venn diagrams can therefore aid in designing efficient database queries and comprehending data manipulation techniques. Furthermore, in areas like compiler design or network protocols, where managing overlapping states or functionalities is common, Venn diagrams offer a clear way to conceptualize these relationships.

Practical Examples of Discrete Math Venn Diagrams

To solidify understanding, let's explore some practical examples of how Venn diagrams are used to solve problems in discrete mathematics.

Example 1: Student Club Memberships

Suppose a school has 100 students. 50 students are in the Chess Club (C), 40 students are in the Debate Club (D), and 30 students are in the Drama Club (R). We are also given that 15 students are in both Chess and Debate, 10 students are in both Chess and Drama, 5 students are in both Debate and Drama, and 2 students are in all three clubs. We can use a three-set Venn diagram to visualize this.

  • Draw three overlapping circles for C, D, and R within a rectangle representing the 100 students (U).
  • Start filling from the innermost intersection: The region for C ∩ D ∩ R has 2 students.
  • For C ∩ D, which includes those in all three, we have 15 students total. So, the region for (C ∩ D) only (not R) is 15 - 2 = 13 students.
  • Similarly, for C ∩ R, the region for (C ∩ R) only (not D) is 10 - 2 = 8 students.
  • For D ∩ R, the region for (D ∩ R) only (not C) is 5 - 2 = 3 students.
  • Now for single sets: Students only in C is 50 - (13 + 8 + 2) = 50 - 23 = 27 students.
  • Students only in D is 40 - (13 + 3 + 2) = 40 - 18 = 22 students.
  • Students only in R is 30 - (8 + 3 + 2) = 30 - 13 = 17 students.
  • The total number of students in at least one club is 27 + 13 + 8 + 2 + 22 + 3 + 17 = 92 students.
  • The number of students not in any club is 100 - 92 = 8 students, which goes in the universal set outside the circles.

This diagram allows us to answer questions like: How many students are in the Chess club but not the Debate or Drama clubs? (27 students).

Example 2: Survey Data Analysis

Imagine a survey of 200 people about their breakfast preferences: Cereal (C), Eggs (E), and Fruit (F). The results are: 80 eat Cereal, 70 eat Eggs, 60 eat Fruit. 30 eat Cereal and Eggs, 25 eat Cereal and Fruit, 20 eat Eggs and Fruit. 10 eat all three. We can use a Venn diagram to see the distribution.

  • Universal Set (U) = 200 people.
  • C ∩ E ∩ F = 10.
  • C ∩ E (only) = 30 - 10 = 20.
  • C ∩ F (only) = 25 - 10 = 15.
  • E ∩ F (only) = 20 - 10 = 10.
  • C (only) = 80 - (20 + 15 + 10) = 80 - 45 = 35.
  • E (only) = 70 - (20 + 10 + 10) = 70 - 40 = 30.
  • F (only) = 60 - (15 + 10 + 10) = 60 - 35 = 25.
  • Total eating at least one item = 35 + 20 + 15 + 10 + 30 + 10 + 25 = 145.
  • People eating none of these = 200 - 145 = 55.

This enables us to determine, for example, how many people eat Cereal or Eggs but not Fruit. This would be the sum of "C only," "E only," and "(C ∩ E) only," which is 35 + 30 + 20 = 85 people.

Example 3: Identifying Common Properties

Consider three programming languages: Python (P), Java (J), and C++ (C). We have a group of developers, and we know: 30 know Python, 35 know Java, 40 know C++. 15 know Python and Java, 20 know Python and C++, 18 know Java and C++. 12 know all three languages.

  • Total developers surveyed.
  • Calculate the overlaps starting from the center.
  • P ∩ J ∩ C = 12.
  • P ∩ J (only) = 15 - 12 = 3.
  • P ∩ C (only) = 20 - 12 = 8.
  • J ∩ C (only) = 18 - 12 = 6.
  • P (only) = 30 - (3 + 8 + 12) = 30 - 23 = 7.
  • J (only) = 35 - (3 + 6 + 12) = 35 - 21 = 14.
  • C (only) = 40 - (8 + 6 + 12) = 40 - 26 = 14.

Using these values, we can find out how many developers know exactly two programming languages: (3 + 8 + 6) = 17 developers. This systematic approach, guided by the Venn diagram structure, makes complex data analysis manageable.

Tips for Drawing and Interpreting Venn Diagrams

Effectively using Venn diagrams involves both accurate drawing and careful interpretation. Here are some tips to help you master these visual tools:

  • Start with the Universal Set: Always begin by drawing the rectangle representing the universal set. This sets the boundaries for all other sets.
  • Place Overlaps Correctly: For three or more sets, ensure that all possible overlapping regions are created before placing numbers. For three sets, this means creating seven distinct regions within the circles.
  • Work from the Inside Out: Begin by filling in the number of elements in the most specific intersection (e.g., the region where all sets overlap). Then, work your way outward, calculating the numbers for regions representing intersections of two sets only, and finally, for elements belonging to only one set.
  • Verify Your Totals: After filling in all regions, sum the numbers in all parts of the diagram (including the area outside the circles but within the universal set). This total should equal the cardinality of the universal set. If it doesn't, recheck your calculations for each region.
  • Understand Shading Conventions: When using shading to represent operations like union or intersection, be consistent. For union (A ∪ B), shade all of A and all of B. For intersection (A ∩ B), shade only the overlapping region. For complement (A'), shade the area outside of A but within U.
  • Label Clearly: Ensure that each circle is clearly labeled with the set it represents and that numbers within each region are legible.
  • Context is Key: Always relate the regions and numbers back to the problem context. What does a particular overlap signify in the real-world scenario you are modeling?

Conclusion: The Power of Visualizing Sets with Venn Diagrams

In conclusion, discrete math venn diagrams explained comprehensively reveals their immense value in simplifying complex set relationships. From their historical roots in logic to their ubiquitous applications in probability, statistics, and computer science, Venn diagrams provide an indispensable visual language for understanding sets and operations. They transform abstract concepts into tangible representations, making it easier to grasp concepts like unions, intersections, and complements. The ability to accurately draw and interpret these diagrams is a fundamental skill for anyone engaged in discrete mathematics, problem-solving, or data analysis. By mastering the principles discussed in this article, you are well-equipped to leverage the power of Venn diagrams to clarify relationships, solve problems, and gain deeper insights into the structure of data.

Frequently Asked Questions

What is the fundamental purpose of a Venn diagram in discrete mathematics?
In discrete mathematics, Venn diagrams are primarily used to visually represent relationships between sets, illustrating intersections (elements common to multiple sets) and unions (all elements from all sets) in a clear and intuitive way.
How do Venn diagrams help in understanding set operations like intersection and union?
Venn diagrams provide a graphical interpretation. The overlapping regions clearly show the intersection of sets, containing elements present in both. The combined area of all circles represents the union, encompassing all unique elements from the involved sets.
What are the limitations of Venn diagrams when dealing with a large number of sets in discrete math?
While effective for 2 or 3 sets, Venn diagrams become visually complex and difficult to interpret accurately with more than three sets. Representing all possible relationships and intersections becomes challenging and can lead to ambiguity.
Can Venn diagrams be used to illustrate the complement of a set in discrete math?
Yes, the complement of a set (elements not in the set but within a universal set) is typically represented by the area outside the circle representing that set, but within the boundaries of the universal set rectangle, in a Venn diagram.
How are Venn diagrams applied in real-world discrete math problems, such as in logic or probability?
In logic, they help visualize logical propositions and their truth values. In probability, Venn diagrams are invaluable for illustrating the relationships between events, calculating probabilities of unions, intersections, and conditional probabilities, especially in scenarios with overlapping outcomes.
