The History and Origins of Venn Diagrams
The history of visualizing set relationships is not new, but the specific graphical representation we now know as the Venn diagram owes its name and widespread adoption to the English logician John Venn. Born in 1834, Venn, while a professor at Cambridge University, developed these diagrams to illustrate propositions in formal logic and set theory. His work built upon earlier efforts by others, most notably Leonhard Euler, whose "Euler circles" predated Venn's diagrams and shared a similar purpose in visually representing logical relationships. Euler's circles, however, did not always depict all possible relationships between sets, often omitting the empty intersection. Venn's key innovation was to ensure that his diagrams represented every possible logical relation between a finite collection of sets, systematically illustrating all combinations of membership and non-membership. This systematic completeness is what distinguishes Venn diagrams and makes them so powerful for rigorous mathematical and logical analysis.
Venn first introduced his diagrams in his 1880 book "On the Employment of the New Analytical Method in the Philosophy of Rhetoric." He further elaborated on their use in his later work, "The Principles of Empirical Logic" (1889). The elegance and clarity of Venn diagrams quickly made them a standard tool in mathematics and logic education. They provided a much-needed visual bridge for abstract set theory concepts, allowing students and researchers alike to grasp complex interrelationships more intuitively. The adoption of Venn diagrams became widespread throughout the 20th century, solidifying their place as a fundamental component of understanding discrete mathematics.
Basic Construction and Components of Venn Diagrams
At its core, a Venn diagram is a graphical representation that uses overlapping circles (or other shapes, though circles are most common) to depict the relationships between different sets of elements. The universal set, which encompasses all elements under consideration for a particular problem, is typically represented by a rectangle enclosing the entire diagram. Within this rectangle, each set is represented by a closed curve, most commonly a circle. The crucial aspect of a Venn diagram is the manner in which these circles overlap, creating distinct regions that correspond to different combinations of set membership.
Each enclosed region within the circles represents a specific subset of elements. The area where two circles overlap signifies the intersection of those two sets, meaning elements that belong to both. The portion of a circle that does not overlap with any other circle represents elements that belong exclusively to that particular set. The areas outside of all circles but within the universal set rectangle represent elements that do not belong to any of the depicted sets. Understanding these basic components is essential for accurately interpreting and constructing Venn diagrams to represent specific mathematical scenarios.
Defining the Universal Set
The first step in constructing a Venn diagram is to clearly define the universal set, denoted by 'U'. This set contains all possible elements that are relevant to the problem at hand. For example, if we are discussing students in a class and their participation in clubs, the universal set might be all students enrolled in that class. The universal set acts as the boundary for our analysis, ensuring that all considered elements are accounted for. The rectangle in a Venn diagram serves as the visual representation of this universal set.
Representing Individual Sets
Each set we wish to examine is represented by a distinct closed curve, typically a circle, within the universal set. For instance, if we have sets A and B, we would draw two circles, one for A and one for B, inside the universal set rectangle. The positioning and overlap of these circles are critical. They should be arranged to visually represent the potential relationships between the sets, such as intersection, subset, or disjointness. The labels of the sets are usually placed near their respective circles.
Illustrating Intersections and Unions
The overlapping regions of the circles are where the power of Venn diagrams truly shines. The area where two circles, say A and B, intersect represents the elements that are common to both sets A and B. This is the set intersection, denoted as A ∩ B. Conversely, the union of two sets, A ∪ B, encompasses all elements that are in A, or in B, or in both. In a Venn diagram, the union is represented by the entire area covered by both circles combined. For diagrams with more than two sets, the intersections become more complex, showing elements common to three or more sets, and these overlaps are crucial for understanding combinatorial principles.
Representing Set Operations with Venn Diagrams

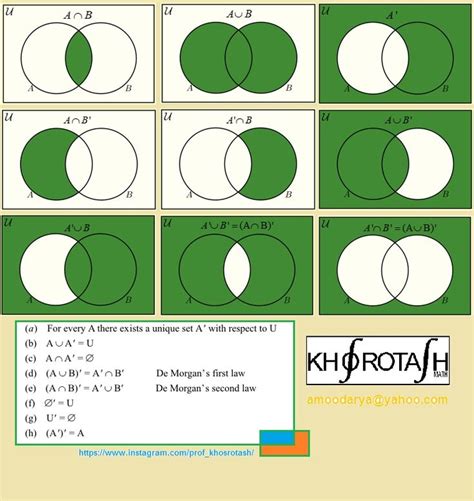

Venn diagrams are particularly effective for illustrating the fundamental operations of set theory: union, intersection, difference, and complement. By shading specific regions of the diagram, we can visually communicate the outcome of these operations. This visual representation aids in understanding the properties of these operations and how they combine. Mastery of these visual representations is key to solving many problems in discrete mathematics.
The Union of Sets
The union of two sets, A and B (denoted as A ∪ B), consists of all elements that are in set A, or in set B, or in both. In a Venn diagram with two overlapping circles representing A and B, the union is depicted by shading the entire area covered by both circles, including the overlapping region. If there are more than two sets, the union of all sets would involve shading all regions that fall within any of the circles.
The Intersection of Sets
The intersection of two sets, A and B (denoted as A ∩ B), consists of all elements that are common to both set A and set B. On a Venn diagram, this is visually represented by the region where the circles for set A and set B overlap. For three sets A, B, and C, the intersection A ∩ B ∩ C would be the central region where all three circles overlap. Understanding intersections is vital for problems involving shared attributes or common elements.
The Difference of Sets
The difference between two sets, A and B (denoted as A - B or A \ B), consists of all elements that are in set A but not in set B. In a Venn diagram, this is shown by shading the portion of circle A that does not overlap with circle B. Similarly, B - A would be the portion of circle B that does not overlap with circle A. This operation highlights elements unique to one set when compared against another.
The Complement of a Set
The complement of a set A, denoted as A' or Ac, consists of all elements in the universal set U that are not in set A. In a Venn diagram, this is represented by shading all the area within the universal set rectangle that lies outside of circle A. If we are considering the complement of the union of two sets, (A ∪ B)', it would be the region within the universal set but outside of both circle A and circle B.
Disjoint Sets
Two sets are considered disjoint if they have no elements in common, meaning their intersection is the empty set (A ∩ B = ∅). In a Venn diagram, disjoint sets are represented by circles that do not overlap. This visual representation immediately tells us that there are no shared elements between these sets.
Key Properties and Theorems Illustrated by Venn Diagrams
Venn diagrams serve as powerful visual tools to prove and understand various fundamental properties and theorems in set theory. These diagrams can intuitively demonstrate relationships like commutativity, associativity, and distributivity of set operations, as well as De Morgan's laws and the principle of inclusion-exclusion.
Commutativity and Associativity
Commutativity means the order of operations does not matter. For union, A ∪ B = B ∪ A. A Venn diagram for A ∪ B would have the same shaded region as B ∪ A, demonstrating this property. Similarly, for intersection, A ∩ B = B ∩ A. The overlapping region for A ∩ B is identical to that for B ∩ A. Associativity applies to operations with three or more sets, such as (A ∪ B) ∪ C = A ∪ (B ∪ C) and (A ∩ B) ∩ C = A ∩ (B ∩ C). Venn diagrams with three overlapping circles can visually confirm that the combined shaded regions for these equivalent expressions are the same.
Distributive Laws
The distributive laws state how union and intersection interact. Specifically, A ∩ (B ∪ C) = (A ∩ B) ∪ (A ∩ C), and A ∪ (B ∩ C) = (A ∪ B) ∩ (A ∪ C). A Venn diagram with three sets A, B, and C can be used to visually prove these. For the first law, you would shade the intersection of A with the union of B and C, and then separately shade the union of the intersection of A and B with the intersection of A and C. If the shaded regions match, the distributive law is visually confirmed.
De Morgan's Laws
De Morgan's laws provide crucial relationships between complements, unions, and intersections: (A ∪ B)' = A' ∩ B' and (A ∩ B)' = A' ∪ B'. Visually, for (A ∪ B)', you shade the area outside of both A and B. For A' ∩ B', you would shade the complement of A (everything outside A) and the complement of B (everything outside B); the overlap of these two shaded regions is precisely the same area as (A ∪ B)'. Similarly, (A ∩ B)' represents everything outside the intersection of A and B, which visually matches the union of A' and B'.
The Principle of Inclusion-Exclusion
The principle of inclusion-exclusion is a powerful counting technique that calculates the size of the union of sets. For two sets, |A ∪ B| = |A| + |B| - |A ∩ B|. A Venn diagram shows this intuitively: we add the counts of elements in A and B, but since the intersection |A ∩ B| is counted twice (once in |A| and once in |B|), we must subtract it once. For three sets, the formula expands: |A ∪ B ∪ C| = |A| + |B| + |C| - |A ∩ B| - |A ∩ C| - |B ∩ C| + |A ∩ B ∩ C|. Each term in the formula corresponds to a specific region in a three-set Venn diagram, and the principle ensures that each element in the union is counted exactly once.
Advanced Applications of Venn Diagrams in Discrete Mathematics
Beyond basic set operations, discrete math Venn diagrams find extensive applications in more complex areas of mathematics and computer science, including combinatorics, algorithms, and database theory. Their ability to represent relationships and count elements in intricate scenarios makes them indispensable tools.
Combinatorics and Counting Problems
Venn diagrams are frequently used to solve combinatorial problems, especially those involving the principle of inclusion-exclusion. For instance, when calculating the number of ways to arrange objects or the number of elements satisfying certain criteria, a Venn diagram can help break down the problem into manageable parts. By labeling the regions with the number of elements in each specific intersection or unique part of a set, one can systematically derive the total count.
Algorithm Design and Analysis
In computer science, Venn diagrams can be used to conceptualize the logic of algorithms, particularly those dealing with set manipulations or data filtering. For example, in database queries, a Venn diagram can visually represent the conditions of a query (e.g., "find all customers who bought product A AND product B but NOT product C"). The diagram helps in understanding the set operations required to retrieve the desired data and can even aid in optimizing query performance by visualizing potential overlaps and redundancies.
Boolean Algebra and Logic Gates
Venn diagrams have a strong connection to Boolean algebra, the mathematical foundation of digital logic circuits. The operations of Boolean algebra (AND, OR, NOT) correspond directly to set operations (intersection, union, complement). A Venn diagram can represent a Boolean expression, where the regions within the circles represent variables and the overlapping areas represent the logical operations. This visual link helps in understanding how complex logical expressions can be implemented using logic gates in digital systems.
Probability Theory and Statistics
The application of discrete math Venn diagrams extends significantly into probability and statistics. They are instrumental in visualizing probabilities of events, conditional probabilities, and the outcomes of random experiments. The area of each region in a Venn diagram can be interpreted as the probability of the elements within that region belonging to the corresponding sets. This visual approach simplifies understanding concepts like the probability of the union or intersection of events.
Venn Diagrams in Probability and Statistics
The visual clarity provided by Venn diagrams makes them exceptionally useful in the field of probability and statistics. They allow for an intuitive understanding of how different events relate to each other and how their probabilities combine. Whether calculating the chance of one event occurring, another occurring, or both, Venn diagrams offer a structured approach.
Visualizing Probabilities of Events
In probability theory, a Venn diagram can represent the sample space (the universal set) and various events as subsets. The total area of the universal set is typically normalized to 1, representing a 100% probability. The area of each circle or overlapping region then corresponds to the probability of the elements within that region belonging to the respective event(s). For instance, if A and B are two events, the area of circle A represents P(A), the area of circle B represents P(B), and the overlapping area represents P(A ∩ B).
Understanding Conditional Probability
Conditional probability, denoted as P(A|B), the probability of event A occurring given that event B has already occurred, can also be visualized using Venn diagrams. While the diagram itself doesn't directly change, the interpretation does. When considering P(A|B), the sample space is effectively reduced to the outcomes within event B. The intersection of A and B (A ∩ B) within the confines of B then represents the favorable outcomes for A given B. The formula P(A|B) = P(A ∩ B) / P(B) highlights that we are looking at the proportion of the intersection within the probability of B.
Calculating the Probability of Unions and Intersections
As mentioned earlier, Venn diagrams visually support the formulas for the probability of the union and intersection of events. The probability of the union of two events, P(A ∪ B), is the sum of their individual probabilities minus the probability of their intersection to avoid double-counting: P(A ∪ B) = P(A) + P(B) - P(A ∩ B). The diagram clearly shows that the intersection is included in both P(A) and P(B), necessitating its subtraction. For independent events, P(A ∩ B) = P(A) P(B), a concept that can also be grasped by observing how the proportional overlap would work.
Illustrating the Principle of Inclusion-Exclusion in Probability
The principle of inclusion-exclusion is directly applicable to probability calculations involving multiple events. For three events A, B, and C, the probability of their union is P(A ∪ B ∪ C) = P(A) + P(B) + P(C) - P(A ∩ B) - P(A ∩ C) - P(B ∩ C) + P(A ∩ B ∩ C). Each probability term in this formula corresponds to the measure of a specific region within a three-set Venn diagram. The visual representation confirms that each element in the union is accounted for exactly once after these additions and subtractions.
Venn Diagrams in Computer Science and Logic
In the realm of computer science and formal logic, Venn diagrams serve as valuable tools for visualizing logical relationships, understanding boolean operations, and designing algorithms. Their structured representation helps in grasping abstract concepts and simplifying complex computational tasks.
Representing Boolean Expressions
Boolean algebra is the bedrock of digital computing, and Venn diagrams offer a visual parallel to its operations. A Boolean expression involving variables like A, B, and C can be mapped onto a Venn diagram. The variables correspond to sets, and the logical operators AND (conjunction), OR (disjunction), and NOT (negation) correspond to intersection, union, and complement, respectively. For example, the expression "A AND B" is represented by the intersection of circles A and B, while "A OR B" is the union of A and B. "NOT A" is the area outside circle A.
Database Query Optimization
In relational databases, queries often involve selecting records based on multiple criteria, which can be thought of as set operations on tables. A Venn diagram can help visualize the conditions of a query, allowing database designers and users to understand how different conditions interact. For instance, a query to find customers who ordered "laptops" AND "accessories" but did NOT order "extended warranties" can be clearly mapped onto a three-set Venn diagram. This visualization aids in understanding the logic and can sometimes reveal opportunities for optimizing query performance by rearranging the order of operations or simplifying conditions.
Algorithm Design for Set Operations
When designing algorithms that perform operations on sets, such as finding unions, intersections, or differences, Venn diagrams can be a useful initial step. They help in breaking down the problem into smaller, manageable parts. For example, an algorithm to find the union of two sets might iterate through elements of the first set and add them to a result set, then iterate through elements of the second set, adding only those not already present. The Venn diagram illustrates exactly which elements need to be considered and in what order for efficient computation.
Formal Logic and Syllogisms
Historically, Venn diagrams were developed to illustrate propositions in formal logic, particularly categorical syllogisms. A syllogism is a type of logical argument that applies deductive reasoning to arrive at a conclusion based on two or more propositions that are asserted or assumed to be true. For example, a classic syllogism: "All men are mortal. Socrates is a man. Therefore, Socrates is mortal." In a Venn diagram, this can be shown by placing the circle representing "Socrates" entirely within the circle for "Men," and the circle for "Men" entirely within the circle for "Mortal beings." This visual mapping helps in validating the logical structure of arguments.
Problem-Solving Strategies Using Venn Diagrams
Venn diagrams are not just for understanding theoretical concepts; they are powerful tools for practical problem-solving, especially in scenarios involving overlapping categories or multiple conditions. By translating word problems into visual set relationships, we can systematically derive solutions.
Translating Word Problems into Set Notation
The first crucial step in using Venn diagrams for problem-solving is to accurately translate the information from a word problem into set theory notation. Identify the distinct groups or categories mentioned in the problem; these will become your sets. Define the universal set that encompasses all elements being considered. For instance, if a problem states "In a survey of 100 students, 60 liked apples, 50 liked bananas, and 30 liked both," the universal set U has 100 elements. Let A be the set of students who liked apples (|A| = 60) and B be the set of students who liked bananas (|B| = 50). The information "30 liked both" translates directly to the intersection, |A ∩ B| = 30.
Filling in the Diagram Region by Region
Once the sets and their relationships are established, begin filling in the Venn diagram. It is often best to start with the most specific information, which is usually the intersection of multiple sets. In the example above, you would write '30' in the overlapping region of circles A and B. Then, work outwards. For set A, since |A| = 60 and 30 are already accounted for in the intersection, the number of students who liked only apples is 60 - 30 = 30. Write '30' in the part of circle A that does not overlap with B. Similarly, for set B, the number of students who liked only bananas is 50 - 30 = 20. Write '20' in the part of circle B that does not overlap with A.
Calculating Remaining Regions and Totals
After filling in the intersections and exclusive parts of the sets, you can determine the number of elements in regions outside the defined sets but within the universal set. In our example, the total number of students who liked apples or bananas or both is 30 (only A) + 30 (A and B) + 20 (only B) = 80. If the universal set is 100 students, then the number of students who liked neither apples nor bananas is 100 - 80 = 20. This value would be placed in the region of the universal set rectangle outside of circles A and B. This methodical approach ensures all elements are accounted for and helps answer questions like "How many liked only apples?" or "How many liked neither fruit?"
Answering Specific Questions Using the Diagram
With the Venn diagram fully populated, answering specific questions becomes straightforward. If the question is "How many students liked apples or bananas?", you would sum the numbers in all regions within circles A and B: 30 + 30 + 20 = 80. If the question is "How many students liked apples but not bananas?", you would look at the region of circle A that does not overlap with B, which is 30. The visual representation of the diagram directly provides the answers to various combinatorial questions derived from the problem statement.
Common Pitfalls and Tips for Using Venn Diagrams Effectively
While Venn diagrams are intuitive, several common mistakes can lead to incorrect interpretations or solutions. Being aware of these pitfalls and adopting good practices can significantly improve their effectiveness.
Pitfall 1: Incorrectly Defining the Universal Set
One common error is not clearly defining the universal set or misinterpreting its scope. If the universal set is not properly established, the areas outside the depicted sets might be incorrectly calculated or misunderstood. Always start by clearly identifying what all the possible elements are.
Pitfall 2: Misinterpreting Overlapping Regions
A frequent mistake is confusing the overlap for "only A" or "only B." Remember that the entire circle represents the set, and the overlap specifically denotes the intersection. When calculating exclusive parts, always subtract the intersection from the total set size.
Pitfall 3: Assuming Sets are Disjoint or Independent
Do not assume that circles do not overlap unless the problem explicitly states that the sets are disjoint. Similarly, do not assume independence in probability problems without justification. The diagram should reflect the actual relationships given in the problem statement.
Pitfall 4: Overcomplicating Diagrams with Too Many Sets
For more than three sets, traditional circular Venn diagrams become increasingly complex and difficult to interpret accurately, as they require many overlapping regions. While generalized Venn diagrams exist, for practical problem-solving with many sets, other combinatorial methods or different visualization techniques might be more suitable.
Tip 1: Start with the Innermost Intersections
When filling in a Venn diagram for a problem, always begin with the most specific information – the intersection of all sets involved. Then, work your way outwards, calculating the regions that are intersections of fewer sets, and finally, the unique parts of each set.
Tip 2: Label Each Region Clearly
As you fill in the numbers, ensure each distinct region of the Venn diagram is clearly labeled with the corresponding count. This prevents confusion and makes it easier to refer back to specific parts of the diagram when answering questions.
Tip 3: Verify Totals
After populating the diagram, always check that the numbers in the diagram add up correctly according to the initial problem statement. Summing the elements in all regions within a circle should equal the total size of that set. The sum of all elements within the universal set should equal the size of the universal set.
Tip 4: Use Color or Shading Systematically
When illustrating set operations or proving properties, use consistent shading or colors for different sets or operations. This can enhance clarity and make the visual proof more compelling and easier to follow.
Conclusion: The Enduring Power of Discrete Math Venn Diagrams
In conclusion, discrete math Venn diagrams stand as a testament to the power of visual representation in mathematics. From their origins in logic and set theory to their pervasive applications in probability, computer science, and everyday problem-solving, these elegantly simple diagrams offer an indispensable method for understanding and communicating complex relationships between collections of elements. By mastering the construction, interpretation, and application of discrete math Venn diagrams, students and professionals alike can gain a deeper, more intuitive grasp of fundamental mathematical principles. Whether illustrating basic set operations like union and intersection or proving intricate theorems like De Morgan's laws and the principle of inclusion-exclusion, discrete math Venn diagrams provide clarity and insight. They are more than just drawing tools; they are conceptual bridges that connect abstract ideas to concrete visualizations, making the world of discrete mathematics more accessible and navigable. The continued reliance on discrete math Venn diagrams across various disciplines underscores their enduring utility and fundamental importance in the study of mathematics and beyond.
